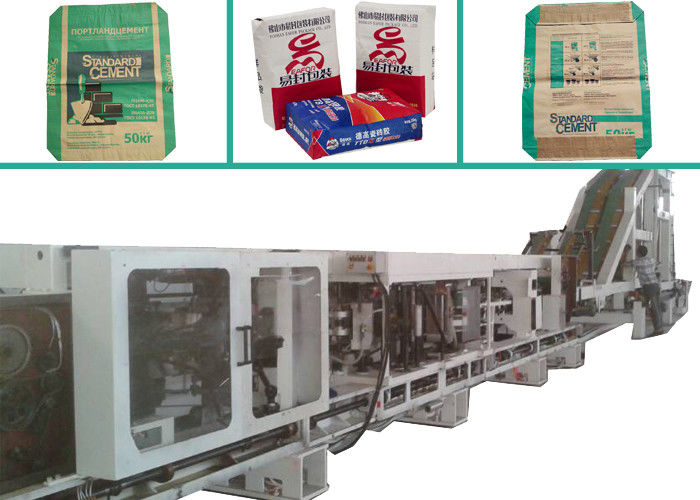

Auto High Speed Bottom Sealing Bag Making Machine For Cement
Composing of the production line HD4916B Bottomer Machine :
HD4913 Bottomer Machine Operating condition
|
Speed
|
80~130 bags/min
|
|
Bag length
|
520~880mm
|
|
Bag width
|
420~600 mm
|
|
Bottom width
|
90~130mm
|
|
Bottom open width
|
200~380mm
|
|
Distance between bottom centers
|
420~780mm
|
|
Valve sheet length
|
100~250mm
|
|
Valve sheet width
|
120~170mm
|
|
Main drive motor
|
33kw
|
|
Total weight
|
22.7T
|
|
Size of whole set
|
21.3m×2.3.m×1.8m ( L×W×H)
|
|
Valve sheet reel diameter
|
Max.1,300mm
|
Composing of the production line HD4913 Bottomer Machine
|
Name
|
Quantity
|
|
High speed feeder machine
|
1
|
|
Perforation machine
|
1
|
|
Tube opening unit
|
1
|
|
Automatic gluing machine
|
1
|
|
Scrip sealing machine
|
1
|
|
Bag bottom turning unit
|
1
|
|
Counting and delivery line
|
1
|
|
Automatic delivering out unit
|
1
|
|
Piling up platform
|
1
|
|
Electric control unit
|
1 (Schneider, German)
|
|
Vacuum-pump
|
1 (Schneider, German)
|
Features of our full-automatic paper bag production line:
1. High Speed Rotary Feeder
2. Tube Alignment
3. Deflector for Irregular Tubes
4. Bottom Creasing Line Station
5. Air Vent Perforation
6. Bottom Opening Unit
7. Valve Station with Winding Station
8. Pasting Internal Strengthen Sheet Unit
9. Bottom Closing Stations
10. Pasting External Strengthen Sheet Unit
Our machine:
Automatic valve paper bag machine for cement,chemicals and food
